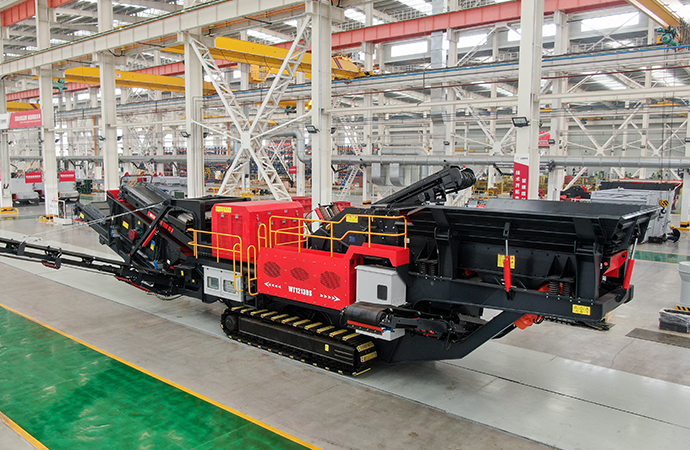

Crawler type mobile impact crusher

Crawler type mobile impact crusher

  • Feeding size:300-700mm
  • Processing capacity:30-250t/h
  • Applied material:river pebbles, rocks, granite, basalt, ore tailings, etc.
  • Application area:mine ore crushing, construction waste recycling, construction aggregate production, highway, railway, bridge construction and other industries.
Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

Characteristics of the crawler type mobile impact crusher:

1. The crawler type mobile impact crusher adopts the Cummins diesel engine as the excellent dynamic system with features of low oil consumption, little noise, reliable performance and constant, economical and green power source. The engine of the crusher can be armed with the military low temperature pre-heating starter which will makes it easy for the crusher to start up in cold weather with the temperature below 25 C°.

2. The ship shaped completely steel base plate has the advantages of high strength and low ground connection pressure and it can easily adapt to the mountainous regions and wet land.

3. The mobile crushing plant is equipped with the large pulling torque featuring high driven power and reliability. Its walking system adopts the total power variable open hydraulic system which features good performance and can make full use of the engine’s power. The main hydraulic components like the pumps and valves are imported from Japan, aiming to provide enough power to the walking system.

4. The imported service guiding operation system makes the crusher not only easy to be operated and controlled, but also to realize the infinite speed change walking.

5. The crawler type mobile impact crusher uses the efficient and mature crushing and screening devices with the compact structure and reliable performance.

6. The mixing pressure energy device adopts the smart double power change-over switch which can make full use of the local power resource, save much operation cost and reduce the emission amount of CO2 and NOx. Once the power is off or the pressure is too low, the crusher will automatically switch to the electricity generation mode of the diesel engine, thus guaranteeing the constant operation of the mobile crusher.

The crawler type mobile impact crusher, as one member of the mobile crusher or mobile crushing plant family, is the latest impact crusher in the modern market. It owns the best noise absorption system namely the noise silencer. The compact structure of this crusher makes it suitable for the construction waste crushing process in the urban area.

There are many other advanced features: the effective dust collector, the proper diesel machine noise pollution discharge system and the releasing system which can remote control the hydraulic pressure inside the mobile crusher and eliminate the problems as well as the pre-screening device which can improve the crushing efficiency to a large extent.

Technical Parameters

Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions
(Width×Length)		 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions
(Width×Length)		 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power ○ 6.12kw ○ 6.12kw ○
Sieve Dimensions ○ 1500×3600 ○ 1500×4200 ○
Belt Conveyors at the Bottom Dimensions
(Width×Length)		 ○ 1000×5800mm ○ 1000×6200mm ○
Dumping Height ○ 2900mm ○ 3000mm ○
Transferring Belt Conveyor Dimensions
(Width×Length)		 ○ 650×2500mm ○ 650×2800mm ○
Dumping Height ○ 1400mm ○ 1400mm ○
Belt Conveyors for Discharging Material Dimensions
(Width×Length)		 ○ 500×8000mm ○ 500×9200mm ○
Dumping Height ○ 4200mm ○ 4500mm ○
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model WT110 and WT110S

Model WT110 WT110S
Dimensions of Transmission Devices Length 14000mm 17000mm
Width 3000mm 3200mm
Height 3600mm 3600mm
Weight 40t 45t
Feeder Hopper Volume 3m³ 5m³
Loading Height 3900mm 4000mm
Primary Screen Power 5.2kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm
Crusher Model CI1110M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm
Max.Feeding Size 400mm 400mm
The Feeder at the Bottom Hopper Volume 0.8m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions
(Width×Length)		 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions
(Width×Length)		 1000×8500mm 1200×11000mm
Dumping Height 3300mm 3300mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×3600
Belt Conveyors at the Bottom Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 2900mm
Transferring Belt Conveyor Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 4200mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 253kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1213 and WT1213S

Model WT1213 WT1213S
Dimensions of Transmission Devices Length 15500mm 17000mm
Width 3200mm 3600mm
Height 3800mm 3800mm
Weight 53t 60t
Feeder Hopper Volume 5m³ 5m³
Loading Height 3900mm 4100mm
Primary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1140×924mm 1140×924mm
Crusher Model CI1213M CI1315M
Inlet Dimensions 1320×900mm 1320×900mm
Max.Feeding Size 500mm 500mm
The Feeder at the Bottom Hopper Volume 1m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions
(Width×Length)		 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions
(Width×Length)		 1000×9900mm 1200×11000mm
Dumping Height 3500mm 3500mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×4200
Belt Conveyors at the Bottom Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 3000mm
Transferring Belt Conveyor Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)		 ○ ○
Dumping Height ○ 4500mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 304kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1315

Model WT1315
Dimensions of Transmission Devices Length 17000mm
Width 3200mm
Height 3800mm
Weight 65t
Feeder Hopper Volume 5m³
Loading Height 4000mm
Primary Screen Power 6.12kw
Sieve Dimensions 1240×930mm
Crusher Model CI1315M
Inlet Dimensions 1540×900mm
Max.Feeding Size 600mm
The Feeder at the Bottom Hopper Volume 1.5m³
Power 6.12kw
Unearthed Belt Conveyors Dimensions
(Width×Length)		 650×3500mm
Dumping Height 2400mm
Main Belt Conveyor Dimensions
(Width×Length)		 1200×11000mm
Dumping Height 3800mm
Secondary Screen Power ○
Sieve Dimensions ○
Belt Conveyors at the Bottom Dimensions
(Width×Length)		 ○
Dumping Height ○
Transferring Belt Conveyor Dimensions
(Width×Length)		 ○
Dumping Height ○
Belt Conveyors for Discharging Material Dimensions
(Width×Length)		 ○
Dumping Height ○
Iron Remover Model RCYQ-10
Diesel Engine Power 132kw
Manufacturer Carter Perkins
The Main Machine Power 366kw
Ways of Controlling Wired/Wireless (optional)
