Product weight: 2850-6510kg
Production capacity: 4-24 t/h
Process materials: quartz stone, gold ore, iron ore, cement clinker, copper ore, pyrrhotite, etc.
Application: It can be widely used in the election of gold plants, coal mining plants, chemical, infrastructure and mechanized casting workshop etc, for continuous uniform, quantitative feeding and dosing.
40 Years history production base and exporter
Pre-sale service
24 hours online
Free technical support and solutions
Factory visit anytime, free pick up
Sales service
Commit to delivery fast
Provide On-site installation service
Free training of product operation
After-sales service
365 days after-sales online
Solve customer feedback problems timely.
Help customers optimize and upgrade equipment
Contact Us ( sales@sinofote.com )

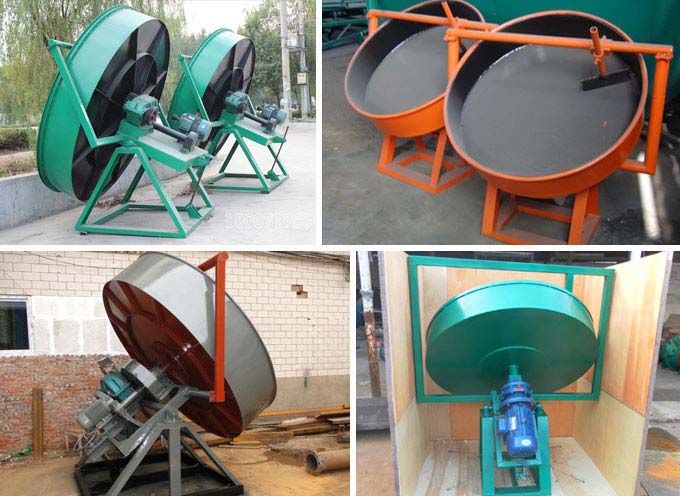

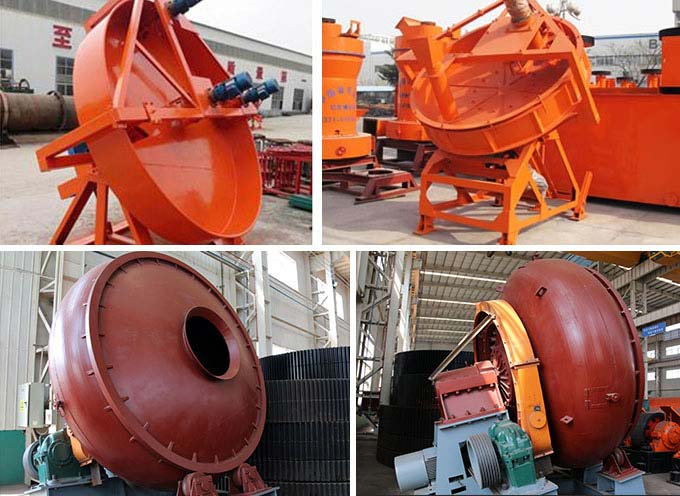

1. Disk Grain Making Machine is the volumetric metering feeding equipment. It can continuously feed the material to the next process and withstand a larger pressure. As a fine material feeding device, it is suitable for conveying all kinds of non-sticky materials such as pulverized coal, cement, clinker, limestone, shale, coal gangue and clay. Or small pieces of material.
2. It can be widely used in the election of gold plants, coal mining plants, chemical, infrastructure and mechanized casting workshop etc, for continuous uniform, quantitative feeding and dosing.
3. This machine is suitable for conveying material size is not more than 50mm, not suitable for conveying material with hight glutinosity, uneasy flowing and easy flowing materials .
1.The disk adopts unitary arc structure and the granulation rate can reach over 93%. Granulation plate with three discharge mouth, easy to intermittent production operations, greatly reducing the labor intensity.
2.Granulation plate bottom with a number of radiation plate to strengthen, durable, never deformation; the same time, thickening, aggravating, solid base design, no anchor bolts fixed, smooth operation.
|
Specification
（m） |
Rotation speed
(r/min) |
Production capacity
(t/h) |
Motor
(kw) |
Adjustment range of obliquity
|
Dimensions
(m) |
Total weight
(t) |
|
Φ2.2
|
14.25
|
4-8
|
7.5
|
35-55
|
2.8×2.75×2.58
|
3.2
|
|
Φ2.5
|
11.81
|
5-10
|
7.5
|
35-55
|
3.2×2.3×3
|
3.6
|
|
Φ2.8
|
11.21
|
12-16
|
7.5
|
35-55
|
3.4×2.6×3.1
|
4.1
|
|
Φ3.0
|
11.3
|
15-18
|
11
|
35-55
|
3.7×2.7×3.3
|
4.8
|
|
Φ3.2
|
9.6
|
15-20
|
11
|
35-55
|
3.9×2.7×3.4
|
5.6
|
|
Φ3.6
|
9.1
|
18-24
|
15
|
35-55
|
4.3×3.1×4.0
|
7.2
|
|
Specification
（m） |
Rotation speed
(r/min) |
Production capacity
(t/h) |
Motor
(kw) |
|
Φ2.2
|
14.25
|
4-8
|
7.5
|
|
Φ2.5
|
11.81
|
5-10
|
7.5
|
|
Φ2.8
|
11.21
|
12-16
|
7.5
|
|
Φ3.0
|
11.3
|
15-18
|
11
|
|
Φ3.2
|
9.6
|
15-20
|
11
|
|
Φ3.6
|
9.1
|
18-24
|
15
|
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
