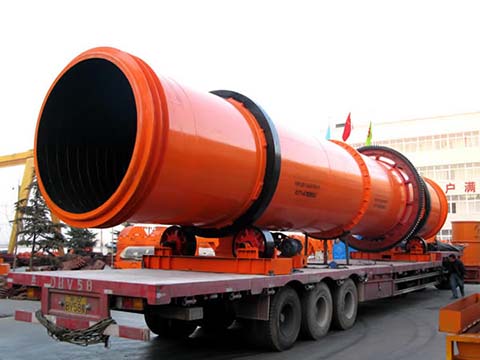

The lignite with the other name of wood coal as a mineral coal with the low degree of coalification is a kind of brownish black and unglazed lean coal between the peat and pitch coal. The lignite dryer or the lignite drying equipment or lignite dryer machine has the advantages of high anti-overload capacity, high handling capacity, low fuel consumption and low drying cost. The particle size and moisture of the lignite can be controlled according to customers’ requirement. The water content of finished product dried by lignite dryer can reach below 8% and the particle size can be controlled smaller than 8mm in the drying process of the coal slime.
Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery. With continuing development in the international market, the sales network of products produced by Fote Machinery has been steadily expanded, and products produced by Fote Machinery have been sold to more than 90 countries and regions all over the world, such as Russia, United States, Kazakhstan, India, Indonesia, South Africa, Libya, Sudan, Iran and so on.
.jpg)
Leave us a message for more product details and price?
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity (%) |
Highest Inlet
Air Temperature (℃) |
Main Motor
(kw) |
Weight
(t) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell Length (m) |
Shell cubage (m³) |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature (℃) |
Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
