Mobile crusher plant

Mobile crusher plant

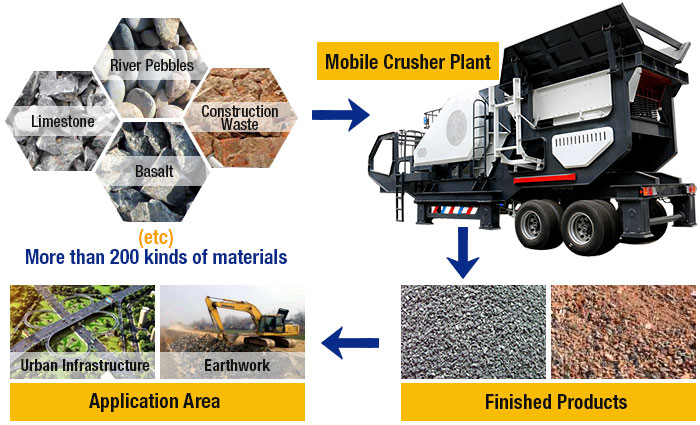

  • Feeding size:480-850mm
  • Processing capacity:45-500t/h
  • Applied material:river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.
  • Application area:mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and other venues operations.
Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

Introduction to Mobile crusher plant

Mobile crushing plant Products and Applications

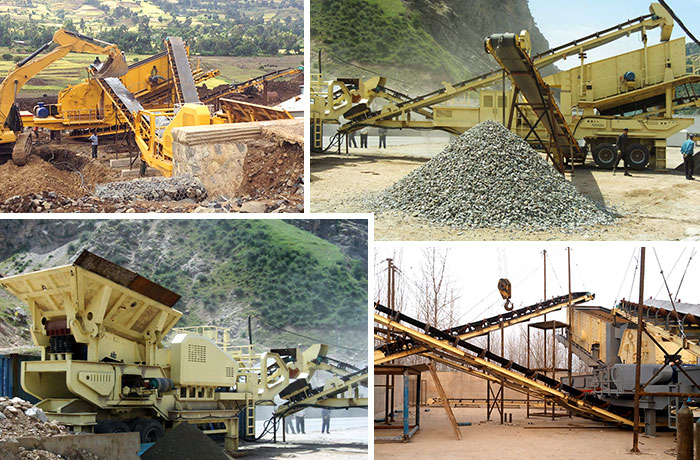

The mobile crusher plant is so famous mobile stone crushing machine for its multi-functions and various features that it has a wide range of applications for the hard material crushing process in the mining, coal mine and cement industries. The mobile crushing plant is also used to reuse the construction waste, to complete the earth and stone work, urban infrastructure, highway and construction site, to handle the topsoil and other materials, to separate sticky concrete aggregate, to assist the construction and explosion industry, to screen the crushed materials in the quarrying industry, to finish the stripping crushing of the cement concrete and to crush again the bituminous concrete.

Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery. With continuing development in the international market, the sales network of products produced by Fote Machinery has been steadily expanded, and products produced by Fote Machinery have been sold to more than 90 countries and regions all over the world, such as Russia, United States, Kazakhstan, India, Indonesia, South Africa, Libya, Sudan, Iran and so on.

Mobile crushing plant

Technical Parameters

Model FTM3S1848V08 FTM3S1860V09 FTM3S2160V103
Transportation length(mm) 13500 15600 15600
Transportation Width(mm) 2830 2830 3100
Transportation Height(mm) 4350 4350 4480
Maximum Length(mm) 14650 16300 16300
Maximum Width(mm) 3900 3900 3900
Maximum Height(mm) 5980 6400 6550
Weight(t) 31 36 49
Tire Configuration Biax Fitted Biax Fitted Biax Fitted
Sand maker HVI0815 HVI0922 HVI1032
Discharging Belt Conveyor B800×2.2M B800×2.5M B1000×2.5M
Belt under vibrating screen B800×7M B800×8M B1000×8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Model FTM3S1848V08 FTM3S1860V09 FTM3S2160V103
Transportation length(mm) 13500 15600 15600
Transportation Width(mm) 2830 2830 3100
Transportation Height(mm) 4350 4350 4480
Maximum Length(mm) 14650 16300 16300
Maximum Width(mm) 3900 3900 3900
Maximum Height(mm) 5980 6400 6550
Weight(t) 31 36 49
Tire Configuration Biax Fitted Biax Fitted Biax Fitted
Sand maker HVI0815 HVI0922 HVI1032
Discharging Belt Conveyor B800×2.2M B800×2.5M B1000×2.5M
Belt under vibrating screen B800×7M B800×8M B1000×8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
