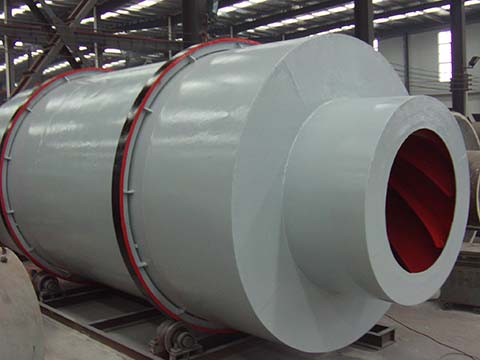

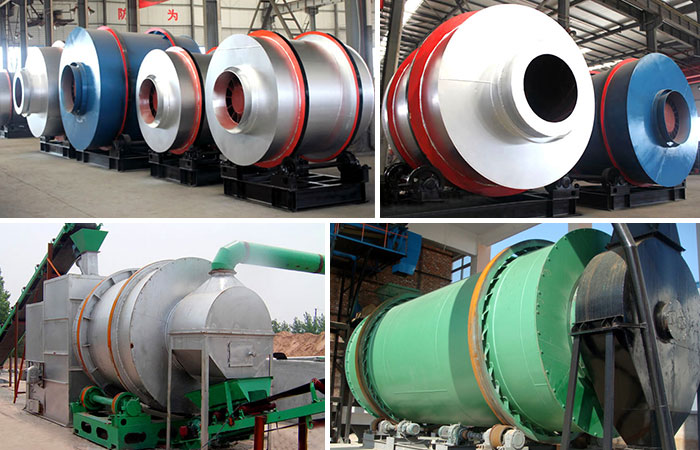

1. Small area occupation: compared with the monocular dryers, the river sand dryer machine can save 60% of the area and the civil engineering investment.
2. Low energy consumption: the coal consumption is one third of the monocular dryer’s consumption amount and the river sand drying equipment consumes less than 9 kg coal for each ton standard.
3. High drying efficiency: the river sand drying machine can be increased by 40% of the heat efficiency compared with the monocular one.

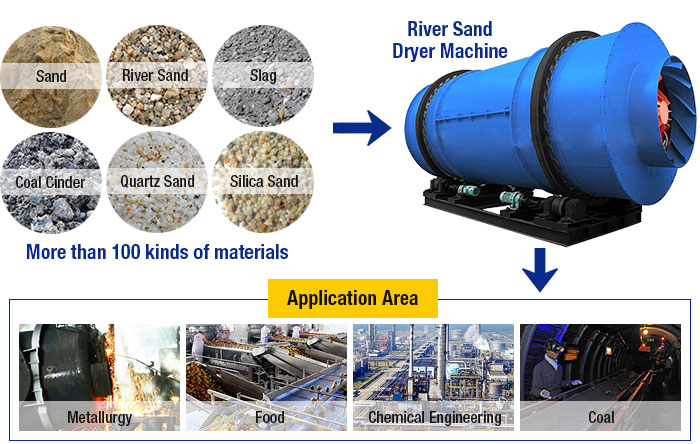

4. Ideal drying effect: materials with the initial water content of 15% will be reduced with 0.5% -1% and the china river sand dryer is the ideal choice for drying the bulk materials such as river sand, yellow sand, sea sand and guava sand.
Henan Fote Heavy Machinery Co,. Ltd. is a large joint-stock corporation, majoring in heavy mining machinery and civil machinery manufacturing. Fote occupies an area of 360,000 square meters, including 60,000 square meters of standard heavy industrial workshops equipped with over 500 large and medium-sized metal processing, riveting and assembly equipment. Total online staff of Fote Heavy Machinery is more than 2,000.
For price list and more product details, please leave us a message by filling the below form, thank you!
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity (%) |
Highest Inlet
Air Temperature (℃) |
Main Motor
(kw) |
Weight
(t) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell Length (m) |
Shell cubage (m³) |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature (℃) |
Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell cubage (m³) |
| Φ1.5×15m | 1500 | 500 | 20.27 |
| Φ1.5×17m | 22.97 | ||
| Φ1.5×19m | 25.68 | ||
| Φ1.8×21m | 1800 | 650 | 35.91 |
| Φ1.8×23m | 39.33 | ||
| Φ1.8×25m | 42.75 | ||
| Φ2.2×21m | 2200 | 800 | 58.10 |
| Φ2.2×23m | 63.61 | ||
| Φ2.2×25m | 69.15 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
