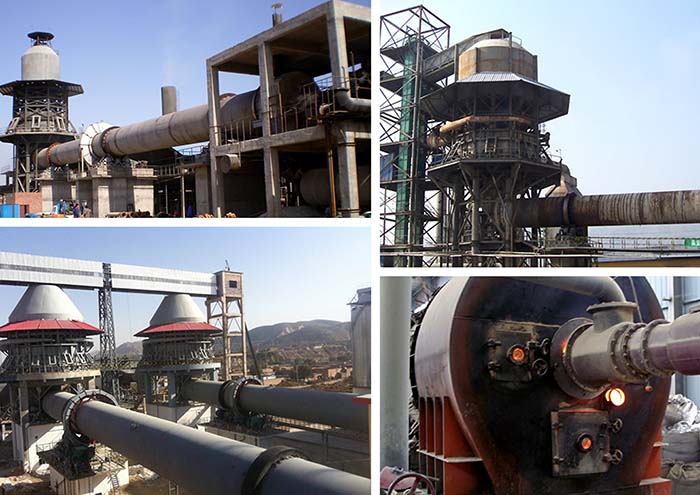

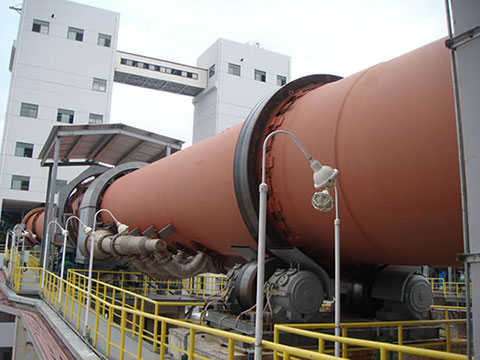

The rotary kiln, also called the kiln dryer, cement rotary kiln and lime rotary kiln, is a type of rotating calcining kiln used in the industries of construction materials, metallurgy, chemical engineering and environmental protection. There are three types of rotary kilns according to the material treatment modes: cement kiln, metallurgy chemical engineering and lime kiln.
The application standard for coal is suitable for the large and medium size cement plants to burn coal and also can be regarded as the basis of the equipment technical transformation and design for the cement plants. This standard can work as the evaluating guideline for the coal resources in the ore field and the coal exploitation and processing project.
Fote has been devoted to the production of lime rotary kiln cement rotary kiln for thirty years and we own the professional and advanced technology of manufacturing cement rotary with the complete production system.
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 |
| Φ4.0×56 | 4 | 56 | 4 | 2300 |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 |
| Φ5.0×74 | 5 | 74 | 4 | 6000 |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 |
| Φ6.0×95 | 6 | 95 | 4 | 10000 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
