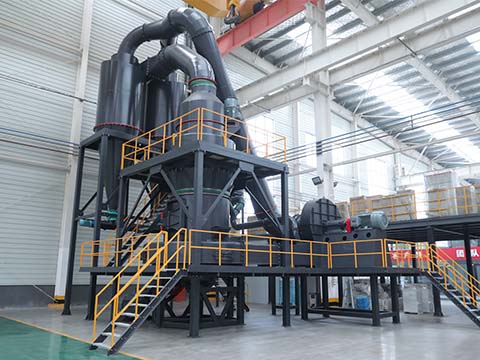

The superfine mill is designed and made by Fote experts based on the market survey and the suggestion from customers all over the world. It is a new type of grinding machine on the foundation of improving the original patented product TGM super pressure trapezoid mill.
When the superfine mill runs, the bulk materials are first crushed by the jaw crusher and then conveyed by the bucket elevator to the storage hopper. Then materials are transported to the main grinding room uniformly and continuously to be ground. The ground material powders are raised along the air flow of the draught fan and then are separated by the analytical engine. The powder with the required fineness will enter the bypass dust collector along with the air flow and then are discharged out of the powder valve. The whole air flow system is a negative pressure closed recirculation and the air flow is absorbed into the centrifugal induced draft fan through the upper return duct of the bypass dust collector, which guarantees the environment protection and hygiene of the production field.
| Type | HGM100 | HGM120 | HGM130 | HGM160 | HGM175 |
| Feeding size (mm) |
＜20 | ＜20 | ＜25 | ＜30 | ＜35 |
| Size of finished product (mm) |
0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 |
| Shift output of different material fineness (t/h) |
0.8-6 | 1.2-8 | 1.8-12 | 2.8-20 | 3.5-25 |
| Rotate speed of central shaft (r/min) |
140 | 140 | 105 | 82 | 75 |
| Diameter of pulverizing ring (mm) |
1075×200 | 1280×240 | 1400×240 | 1770×280 | 1900×300 |
| Diameter of pulverizing roller (mm) |
320×200 | 370×240 | 410×240 | 450×280 | 500×300 |
| Main Motor (kw) |
37 | 55 | 75 | 132 | 160 |
| Fan Motor (kw) |
45 | 55 | 75 | 132 | 160 |
| Analyzer motor (kw) |
11 | 15 | 18.5 | 22 | 30 |
| Type | Feeding size(mm) | Shift output of different material fineness (t/h) |
| HGM100 | ＜20 | 0.8-6 |
| HGM120 | ＜20 | 1.2-8 |
| HGM130 | ＜25 | 1.8-12 |
| HGM160 | ＜30 | 2.8-20 |
| HGM175 | ＜35 | 3.5-25 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
