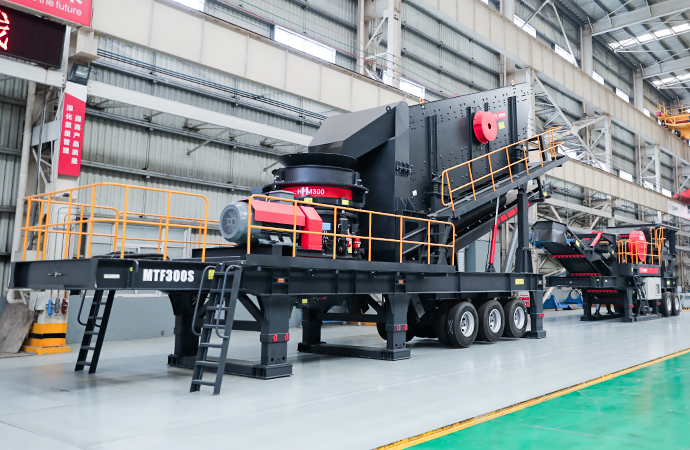

Wheel mobile cone crusher

Wheel mobile cone crusher

  • Feeding size:175-241mm
  • Processing capacity:27-445t/h
  • Applied material:river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.
  • Application area:mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and other venues operations.
Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

The wheel mobile cone crusher is commonly used portable rock crusher, which can meet the construction waste operation. Its effective dust pelletizing system, the proper pollution discharging status of the diesel engine and the releasing system can remotely control the hydraulic pressure to remove the obstacles of the portable rock crusher. The portable rock crusher increases the crushing efficiency.

Wheel mobile cone crusher Products and Applications

The portable rock crusher or mobile stone crusher plant is widely used in the industries of mine crushing, construction waste recycling, construction aggregate production, and highway, railway and bridge construction. Mobile stone crusher plant is applied to crush all kinds of stones and minerals with different hardness such as granite, basalt, marble, sandstone, quartz stones, limestone, iron ore, copper ore, manganese ore, gangue, non-ferrous metals, cobbles and construction waste produced during the city relozation process.

Wheel mobile cone crusher

Henan Fote Machinery Co., Ltd. covers an area of 360,000 square meters, including heavy duty industrial workshops with 60,000 square meters. The major equipment of our company include large and medium sized metal processing, riveting and installing machines, such as ball mill, jaw crusher, cone crusher, hammer crusher, Raymond mill, magnetic separator, flotation separator, drying machine, etc.

Leave us a message for more product drtails and price list?

Technical Parameters

Model FTM3S184F210 FTM3S185F214 FTM3S216F315 FTM3S184HD1110 FTM3S216HD1315
Transportation lenght(mm) 14600 15000 16000 16000 16000
Transportation Width(mm) 2800 2900 3100 3100 3100
Transportation Height(mm) 4400 4400 4550 4400 4550
Maximum Lenght(mm) 16000 16000 17000 16500 17000
Maximum Width(mm) 3800 3900 4600 3900 4600
Maximum Height(mm) 6500 6500 6900 6800 6900
Weight(t) 35 41.5 54 42 48.5
Tire Configuration Dualaxial Dualaxial Triaxial Triaxial Triaxial
Impact Crusher PF1210 PF1214 PF1315 HD1110 HD1315
Feeding belt conveyor B650×15M×2 B800×15M×2 B1000×15M×2 B800×15M×2 B1000×15M×2
Return belt conveyor B650×14M B800×14M B1000×16M B800×16M B1000×16M
Conveyor Belt For Final Product B500×15M×2 B500×15M×2 B650×15M×2 B500×15M×2 B650×15M×2
Under Vibrating Screen B800×7.5M B800×7.5M B1000×9M B800×8M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS1854 3YZS2160 3YZS1848 3YZS2160

Model FTM3S184F210 and FTM3S185F214 and FTM3S216F315

Model FTM3S184F210 FTM3S185F214 FTM3S216F315
Transportation lenght(mm) 14600 15000 16000
Transportation Width(mm) 2800 2900 3100
Transportation Height(mm) 4400 4400 4550
Maximum Lenght(mm) 16000 16000 17000
Maximum Width(mm) 3800 3900 4600
Maximum Height(mm) 6500 6500 6900
Weight(t) 35 41.5 54
Tire Configuration Dualaxial Dualaxial Triaxial
Impact Crusher PF1210 PF1214 PF1315
Feeding belt conveyor B650×15M×2 B800×15M×2 B1000×15M×2
Return belt conveyor B650×14M B800×14M B1000×16M
Conveyor Belt For Final Product B500×15M×2 B500×15M×2 B650×15M×2
Under Vibrating Screen B800×7.5M B800×7.5M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS1854 3YZS2160

Model FTM3S184HD1110 and FTM3S216HD1315

Model FTM3S184HD1110 FTM3S216HD1315
Transportation lenght(mm) 16000 16000
Transportation Width(mm) 3100 3100
Transportation Height(mm) 4400 4550
Maximum Lenght(mm) 16500 17000
Maximum Width(mm) 3900 4600
Maximum Height(mm) 6800 6900
Weight(t) 42 48.5
Tire Configuration Triaxial Triaxial
Impact Crusher HD1110 HD1315
Feeding belt conveyor B800×15M×2 B1000×15M×2
Return belt conveyor B800×16M B1000×16M
Conveyor Belt For Final Product B500×15M×2 B650×15M×2
Under Vibrating Screen B800×8M B1000×9M
Vibrating Screen Model 3YZS1848 3YZS2160
