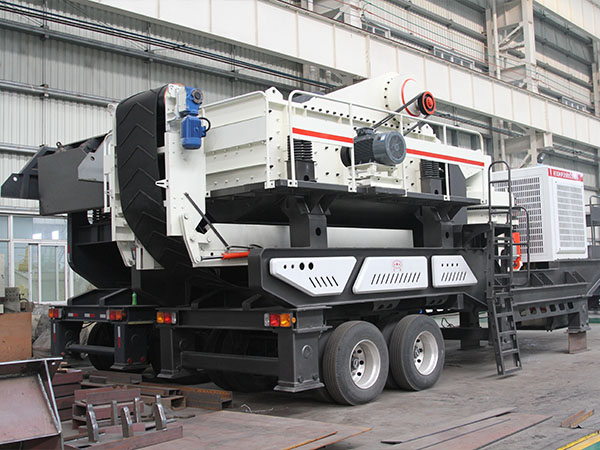

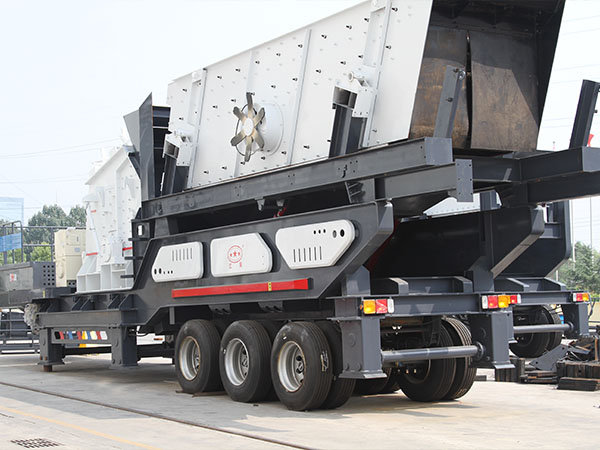

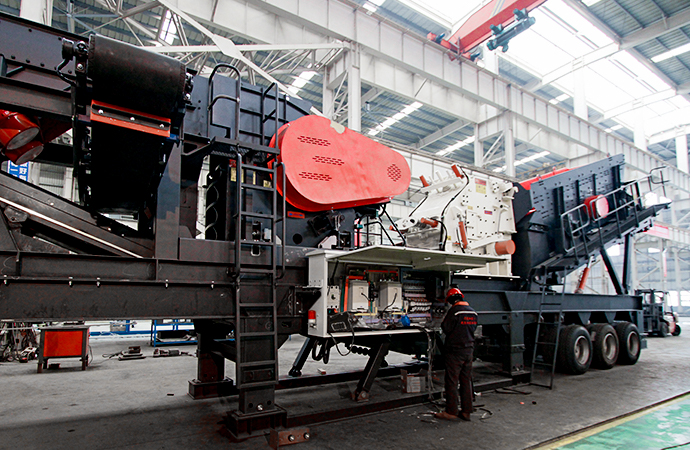

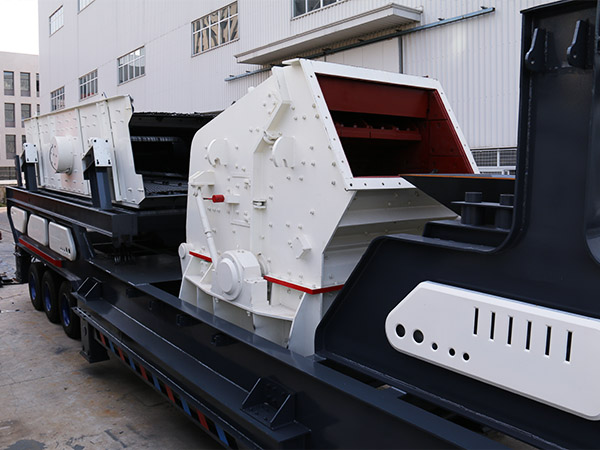

The wheel mobile primary impact crusher is famous portable aggregate crusher, with a high vehicle-mounted chassis and small radius of turning circle, so it is suitable to travel on the common highway and on the tough roads in the crushing field, which saves the arranging time of the crusher to enter the reasonable field. wheel mobile primary impact crusher or crusher mobile also provides the whole crushing process with flexible operating space.
Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery, with two professional industrial workshops and more than 300 machine machining, welding and assembly equipment with large and medium size. Fote Machinery has won wide praise at home and abroad by the exquisite techniques and advanced technology, and it’s also become the large mining machinery export base in China.
Model | FTM3S184F210 | FTM3S185F214 | FTM3S216F315 | FTM3S184HD1110 | FTM3S216HD1315 |
Transportation lenght(mm) | 14600 | 15000 | 16000 | 16000 | 16000 |
Transportation Width(mm) | 2800 | 2900 | 3100 | 3100 | 3100 |
Transportation Height(mm) | 4400 | 4400 | 4550 | 4400 | 4550 |
Maximum Lenght(mm) | 16000 | 16000 | 17000 | 16500 | 17000 |
Maximum Width(mm) | 3800 | 3900 | 4600 | 3900 | 4600 |
Maximum Height(mm) | 6500 | 6500 | 6900 | 6800 | 6900 |
Weight(t) | 35 | 41.5 | 54 | 42 | 48.5 |
Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial | Triaxial |
Impact Crusher | PF1210 | PF1214 | PF1315 | HD1110 | HD1315 |
Feeding belt conveyor | B650×15M×2 | B800×15M×2 | B1000×15M×2 | B800×15M×2 | B1000×15M×2 |
Return belt conveyor | B650×14M | B800×14M | B1000×16M | B800×16M | B1000×16M |
Conveyor Belt For Final Product | B500×15M×2 | B500×15M×2 | B650×15M×2 | B500×15M×2 | B650×15M×2 |
Under Vibrating Screen | B800×7.5M | B800×7.5M | B1000×9M | B800×8M | B1000×9M |
Vibrating Screen Model | 3YZS1848 | 3YZS1854 | 3YZS2160 | 3YZS1848 | 3YZS2160 |
Model FTM3S184F210 and FTM3S185F214 and FTM3S216F315
Model | FTM3S184F210 | FTM3S185F214 | FTM3S216F315 |
Transportation lenght(mm) | 14600 | 15000 | 16000 |
Transportation Width(mm) | 2800 | 2900 | 3100 |
Transportation Height(mm) | 4400 | 4400 | 4550 |
Maximum Lenght(mm) | 16000 | 16000 | 17000 |
Maximum Width(mm) | 3800 | 3900 | 4600 |
Maximum Height(mm) | 6500 | 6500 | 6900 |
Weight(t) | 35 | 41.5 | 54 |
Tire Configuration | Dualaxial | Dualaxial | Triaxial |
Impact Crusher | PF1210 | PF1214 | PF1315 |
Feeding belt conveyor | B650×15M×2 | B800×15M×2 | B1000×15M×2 |
Return belt conveyor | B650×14M | B800×14M | B1000×16M |
Conveyor Belt For Final Product | B500×15M×2 | B500×15M×2 | B650×15M×2 |
Under Vibrating Screen | B800×7.5M | B800×7.5M | B1000×9M |
Vibrating Screen Model | 3YZS1848 | 3YZS1854 | 3YZS2160 |
Model FTM3S184HD1110 and FTM3S216HD1315
Model | FTM3S184HD1110 | FTM3S216HD1315 |
Transportation lenght(mm) | 16000 | 16000 |
Transportation Width(mm) | 3100 | 3100 |
Transportation Height(mm) | 4400 | 4550 |
Maximum Lenght(mm) | 16500 | 17000 |
Maximum Width(mm) | 3900 | 4600 |
Maximum Height(mm) | 6800 | 6900 |
Weight(t) | 42 | 48.5 |
Tire Configuration | Triaxial | Triaxial |
Impact Crusher | HD1110 | HD1315 |
Feeding belt conveyor | B800×15M×2 | B1000×15M×2 |
Return belt conveyor | B800×16M | B1000×16M |
Conveyor Belt For Final Product | B500×15M×2 | B650×15M×2 |
Under Vibrating Screen | B800×8M | B1000×9M |
Vibrating Screen Model | 3YZS1848 | 3YZS2160 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
